Energy-Saving Two-Chamber Processing Line

Maximum Throughput: The Easttec Double Chamber furnace is the best choice for high-volume glass processing factories.

Double the Speed: Two heating chambers allow for simultaneous processing, dramatically increasing your daily capacity.

Proven Reliability: Easttec’s matrix heating technology guarantees consistent results and excellent optical quality.

Versatile Capability: Expertly handles architectural and industrial glass from 4mm up to 19mm in thickness.

Lower Running Costs: Our advanced insulation technology saves thermal energy loss every day.

Professional IPC Interface: Use a stable industrial computer system to manage complex production recipes with ease.

Safe & Certified: Manufactured to strict CE standards, making it a secure investment for any global business.

Factory Scalability: Upgrade your factory’s potential with a machine built for heavy-duty, high-speed tempering.

Product Description

Energy-Saving Two-Chamber Processing Line: Double Your Glass Production Capacity

The Energy-Saving Two-Chamber Processing Line from Luoyang Easttec delivers enterprise-level performance with proven results. This dual-chamber tempering system processes glass from 4mm to 19mm thickness while achieving up to 1.8 to 1.9 times higher throughput than conventional single-chamber furnaces. Built with advanced Italian-standard forced convection technology and high-density insulation, it reduces thermal energy loss, lowering your operating costs. Backed by 30+ years of glass tempering expertise, our dual-stage heating architecture ensures superior optical flatness while doubling your daily production capacity.

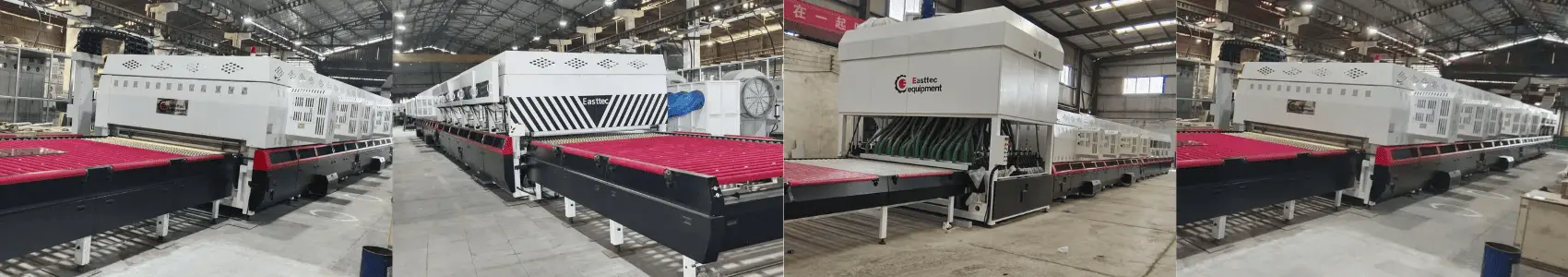

dual chambers

Why Choose a Dual-Chamber Glass Tempering System?

Traditional single-chamber furnaces create production bottlenecks. You're limited by one heating cycle at a time.

The two-chamber design changes everything.

While one batch finishes heating in the high-temperature chamber, your next batch is already pre-warming in the first chamber. This continuous flow eliminates idle time and maximizes your equipment investment.

You gain real competitive advantage in high-volume markets. Architectural glass producers processing 4mm to 6mm lites see the most dramatic capacity improvements.

Core Technical Features That Drive Performance

True Forced Convection Technology

Our heating system uses ceramic components rated to 1300°C. High-temperature blowers create internal hot air circulation throughout both chambers.

This means faster heating. More uniform temperature distribution. Fewer rejected pieces.

You get consistent quality across every production run.

Intelligent Industrial PC Control System

Managing two heating chambers requires precise synchronization. Our IPC control hub handles the complexity for you.

The system coordinates:

Pre-heating chamber timing
High-heating chamber cycles
Quenching section integration
Power distribution optimization

The multi-language interface supports English, Spanish, Russian, Korean, Portuguese, French, German, and Turkish. Your operators can be fully trained within one week.

Advanced Insulation Architecture

Energy costs matter. We've engineered high-density insulation that cuts thermal loss compared to standard furnaces.

Your electricity bills drop. Your profit margins improve.

The intelligent power management prevents surges while balancing heating elements between chambers. You get stable operation on industrial power grids worldwide.

Technical Specifications

Parameter	Specification
Glass Thickness Range	4mm – 19mm
Heating Architecture	Dual-stage (pre-heating + high-heating chambers)
Production Capacity	Up to 1.8 – 1.9× single-chamber models
Energy Efficiency	Reduction in thermal energy loss
Control System	Industrial PC (IPC) with synchronized management
Temperature Capacity	Ceramic components rated to 1300°C
Voltage Options	220V / 380V / 415V
Frequency Options	50Hz / 60Hz
Certification	CE compliant
Interface Languages	English, Spanish, Russian, Korean, Portuguese, French, German, Turkish
Production Lead Time	80–100 working days (custom-built)
Operator Training Time	Within one week

How Dual-Chamber Processing Improves Your Output Quality?

Thin architectural glass presents unique challenges. Heat it too quickly, and you create thermal shock. The result? Surface distortion and optical defects.

Our Energy-Saving Two-Chamber Processing Line solves this through gradual heating.

Chamber 1 pre-warms your glass to an intermediate temperature. Chamber 2 brings it to final tempering temperature. This two-step process creates a uniform thermal profile from edge to center.

You achieve superior flatness. Minimal distortion. Excellent optical clarity.

For processors focused on 4mm to 6mm architectural lites, this quality advantage translates directly to fewer customer complaints and higher repeat orders.

Global Customization for Your Market Requirements

Every market has different needs. We offer deep customization across:

Power System Adaptation

Compatible with global voltage and frequency standards
Stable operation worldwide

Production Configuration

Equipment dimensions tailored to your floor space
Heating curves optimized for your product mix
Cooling parameters adjusted for your climate

Appearance Options

Equipment color customization
Branding integration available

Complete Turnkey Solutions From Design to Production

You're not just buying equipment. You're gaining a partner with three decades of glass tempering experience.

Our full lifecycle service includes:

Preliminary Consultation – We analyze your production requirements
Project Design – Custom engineering for your facility
Solution Optimization – Refining specifications for maximum ROI
Manufacturing – Quality-controlled production
Installation & Commissioning – Expert on-site setup
Operation Training – Comprehensive operator education
After-Sales Service – 24/7 technical support

Our experienced engineers provide fast response when you need assistance. You get stable operation and peace of mind.

Frequently Asked Questions

Q1: A Twofold Chamber heater is much bigger. Is the vitality utilization moreover twofold compared to a single-chamber model?

No, the power consumption depends on what kind of two chambers you choose and what productivity you want to achieve.

Q2: How does the twin-chamber plan make strides the quality of 4mm and 5mm engineering glass?

Heating lean glass (4-6mm) as well rapidly in a single-stage heater regularly leads to "warm stun" and surface twisting. Easttec's Twofold Chamber framework employments a slow warming technique: the to begin with chamber pre-warms the glass, and the moment brings it to the last treating temperature. This two-step prepare guarantees a much more uniform warm profile, coming about in prevalent levelness and less optical defects.

Q3: What are the space and control necessities for introducing an Easttec Twofold Chamber furnace?

Due to the extra warming chamber, the heater body is longer than a standard show. It is planned for industrial facilities with a clear generation stream. With respect to control, whereas the top beginning stack is higher, the Mechanical PC (IPC) administration framework scholarly people equalizations the warming components between the two chambers to avoid control surges, making it a steady and solid arrangement for mechanical control networks.

Who Benefits Most From This Technology?

This product is ideal for:

High-volume architectural glass processors
Factories producing 4mm to 6mm lites at scale
Manufacturers seeking to reduce per-unit energy costs
Operations expanding capacity without adding floor space
Processors requiring superior optical quality

If you're running your current equipment at maximum capacity and turning away orders, this system provides the scalability you need.

Ready to Double Your Production Capacity?

Discover how our energy-efficient dual-chamber technology with Energy-Saving Two-Chamber Processing Line can transform your glass processing operation. Contact our team for a customized solution at sales@easttecmachine.com.
