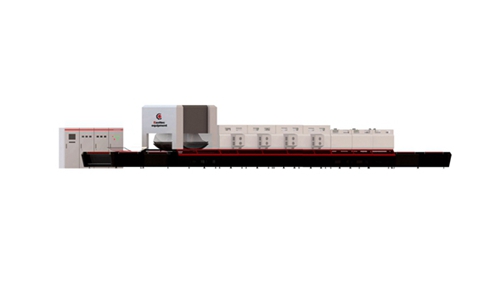

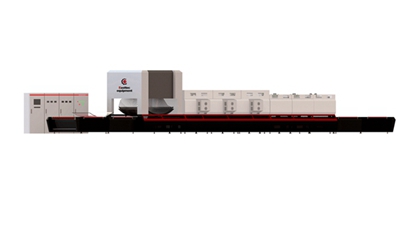

Convection Flat and Bent Bi-directional Tempering Furnace

Short Description:

Flat and Bent tempering furnace can satisfy customer’s requirement of producing both flat and bent tempered glass. Multiple function in only one machine can help customers save investment but make more profit.


  • Brand: Easttec
  • Certificate: CE
  • Payment: T/T; L/C
  • Warranty: 1 year
  • After-sale service: Engineers available for overseas installation and commissioning
  • Product Detail

    Product Tags

    Flat and Bent tempering furnace can satisfy customer’s requirement of producing both flat and bent tempered glass. Multiple function in only one machine can help customers save investment but make more profit.

    Main Characteristics

    • Multiple functions in one machine can satisfy customer’s different requirements.
    • Precision CNC processed components guarantee the precise formation and excellent curvature.
    • Powerful constrol system guarantees high automation and a friendly user interface.
    • Suitable for furniture , shower glass, architectural flat and cureve glass, automotive side window, etc.

    Technical Parameters

    Model Max. Flat Size(mm) Min. Flat Size(mm) Max. Bent Size(mm) Min. Bent Size(mm) Thickness(mm) Min. Radius(mm)
       SH-FAB2436-15  2440 x 3660 100 x 300 2440 x 1500  500 x 500 4-19 650
    SH-FAB2436-20 2440 x 3660 100 x 300 2440 x 2000   500 x 500 4-19 850
    SH-FAB2436-25 2440 x 3660 100 x 300 2440 x 2500   500 x 500 4-19 1000
    SH-FAB2442-15 2440 x 4200 100 x 300 2440 x 1500   500 x 600 4-19 650
    SH-FAB2442-20 2440 x 4200  100 x 300 2440 x 2000   500 x 600 4-19 850
    SH-FAB2442-25 2440 x 4200  100 x 300 2440 x 2500   500 x 600 4-19 1000
    SH-FAB2450-15 2440 x 5000  100 x 300 2440 x 1500   500 x 800 4-19 650
    SH-FAB2450-20 2440 x 5000  100 x 300 2440 x 2000   500 x 800 4-19 850
    SH-FAB2450-25 2440 x 5000 100 x 300 2440 x 2500   500 x 800 4-19 1000

    Note: The above models are the normal ones. Machine can be customized according to your special requirements.
