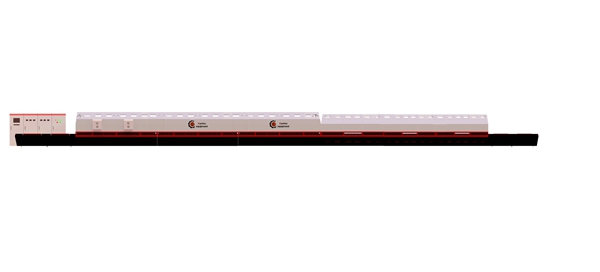

Continuous Flat Tempering Furnace

Short Description:

Continuous flat tempering furnace is especially suitable for mass production of high optical quality tempered glass for solar panel, architecture, furniture, domestic appliance, etc.


  • Brand : Easttec
  • Certificate: CE
  • Payment: T/T; L/C
  • Warranty: 1 year
  • After-sale service: Engineers available for overseas installation and commissioning
  • Product Detail

    Product Tags

    Continuous flat tempering furnace is especially suitable for mass production of high optical quality tempered glass for solar panel, architecture, furniture, domestic appliance, etc.

    Main Characteristcs

    • With continuous transmission and heating techniquies, glass is tempered in a single direction, which greatly reduce the possibility of glass surface breakage.
    • Continuous transmission and heating techniques can greatly increase  the productivity.
    • Especially suitable for producing mass production of tempered glass.

    Technical Parameters

    Model Max. size(mm) Min. size(mm) Thickness(mm) Power(KVA)
     LA0720  750 x 2000  200 x 300  3-8  1000
     LA0920  900 x 2000  200 x 300  3-8  1250
     LA1220  1250 x 2000  200 x 300  3-10  1600
     LA1720  1700 x 2000  200 x 300  3-10  2000
     LA1725  1700 x 2500  200 x 300  3-10  2500
     LA2025  2000 x 2500  200 x 300  3.2-10  2800

    Note: Heating chamber length could be 24m, 30m, 36m, 42m according to customer’s productivity requirement.

    The above models are the normal ones. Machine can be customized according to your special requirements.
